Description

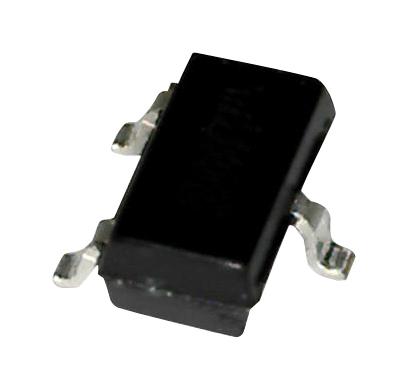

DIODES INC. - ZXMN2F34FHTA - Power MOSFET, Low Voltage, N Channel, 20 V, 4 A, 0.06 ohm, SOT-23, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 4A
- Drain Source Voltage Vds: 20V
- On Resistance Rds(on): 0.06ohm
- Rds(on) Test Voltage Vgs: 4.5V
- Threshold Voltage Vgs: 800mV
- Power Dissipation Pd: 1.4W
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Current Id Max: 4A
- On State Resistance @ Vgs = 2.5V: 120mohm
- On State Resistance @ Vgs = 4.5V: 60mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 20V
- Voltage Vgs Max: 12V
- Voltage Vgs Rds on Measurement: 4.5V
- Voltage Vgs th Min: 500mV
