Description

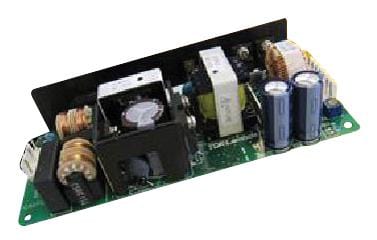

TDK-LAMBDA - ZWS-150BAF-24 - AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 151.2 W, 85V AC to 265V AC, Adjustable, Fixed
- No. of Outputs: 1 Output
 - Power Rating (Covection Cooling): 151.2W
 - Power Rating (Forced Cooling): -
 - Input Voltage VAC: 85V AC to 265V AC
 - Power Supply Output Type: Adjustable, Fixed
 - Output Voltage - Output 1: 24V
 - Output Current - Output 1: 6.3A
 - Output Voltage - Output 2: -
 - Output Current - Output 2: -
 - Output Voltage - Output 3: -
 - Output Current - Output 3: -
 - Output Voltage - Output 4: -
 - Current, Output 4: -
 - Product Range: ZWS-BAF Series
 - SVHC: No SVHC (15-Jan-2018)
 - Applications: Broadcast, Industrial, Lighting, Telecom
 - Efficiency: 90%
 - Height: 34mm
 - Input Voltage: 85V AC to 265V AC
 - Input Voltage AC Max: 265V
 - Input Voltage AC Min: 85V
 - Length: 75mm
 - Line Regulation: 96mV
 - Load Regulation: 150mV
 - No. of Outputs: 1Outputs
 - Output Current Max: 6.3A
 - Output Power Max: 151.2W
 - Output Voltage Max: 26.4V
 - Output Voltage Min: 21.6V
 - Power Rating: 151.2W
 - Width: 160mm
