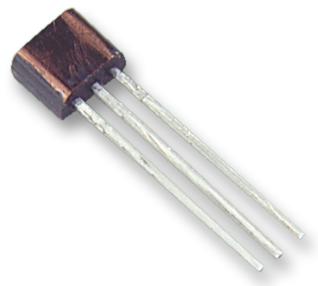

ZTX753 Transistor, PNP,-100V, E-Line Diodes Inc.

DIODES INC.SKU: ZTX753 Order code: 9525637

Price:
Sale price€2,39

Tax included Shipping calculated at checkout

Stock:
In stock (8942 units), ready to be shipped

Documents et téléchargements

Description

DIODES INC. - ZTX753 - Bipolar (BJT) Single Transistor, General Purpose, PNP, 100 V, 2 A, 1 W, E-Line, Through Hole

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: -100V
  • Transition Frequency ft: 140MHz
  • Power Dissipation Pd: 1W
  • DC Collector Current: -2A
  • DC Current Gain hFE: 100hFE
  • Transistor Case Style: E-Line
  • No. of Pins: 3Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): -500mV
  • Continuous Collector Current Ic Max: -2A
  • Current Ic @ Vce Sat: -2A
  • Current Ic Continuous a Max: -2A
  • Current Ic hFE: 500mA
  • Gain Bandwidth ft Min: 100MHz
  • Gain Bandwidth ft Typ: 140MHz
  • Hfe Min: 100
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Pin Configuration: e
  • Power Dissipation Ptot Max: 1W
  • Voltage Vcbo: 120V
