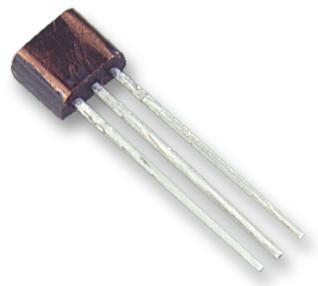

ZTX751 Transistor, BIPOL PNP, -60V, -2A, E-Line Diodes Inc.

DIODES INC.SKU: ZTX751 Order code: 9525629

Price:
Sale price€2,35

Tax included Shipping calculated at checkout

Stock:
In stock (1976 units), ready to be shipped

Documents et téléchargements

Description

DIODES INC. - ZTX751 - Bipolar (BJT) Single Transistor, General Purpose, PNP, 60 V, 2 A, 1 W, E-Line, Through Hole

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: -60V
  • Transition Frequency ft: 140MHz
  • Power Dissipation Pd: 1W
  • DC Collector Current: -2A
  • DC Current Gain hFE: 200hFE
  • Transistor Case Style: E-Line
  • No. of Pins: 3Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): 500mV
  • Continuous Collector Current Ic Max: 2A
  • Current Ic @ Vce Sat: 2A
  • Current Ic Continuous a Max: 2A
  • Current Ic hFE: 500mA
  • Gain Bandwidth ft Min: 100MHz
  • Gain Bandwidth ft Typ: 140MHz
  • Hfe Min: 100
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Pin Configuration: e
  • Power Dissipation Ptot Max: 1W
  • Voltage Vcbo: -80V
