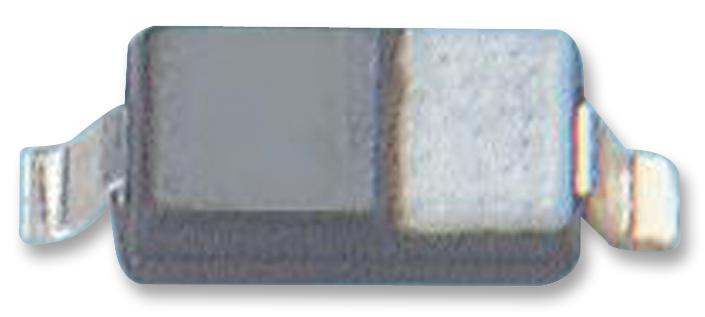

DIODES INC. - ZLLS400 - Small Signal Schottky Diode, Single, 40 V, 520 mA, 610 mV, 12 A, 150 °C
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 40V
- Forward Current If(AV): 520mA
- Forward Voltage VF Max: 610mV
- Forward Surge Current Ifsm Max: 12A
- Operating Temperature Max: 150°C
- Diode Case Style: SOD-323
- No. of Pins: 2Pins
- Product Range: ZLLS4 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Alternate Case Style: SC-76
- Current If @ Vf: 400mA
- Current Ifsm: 12A
- Current Ir Max: 10mA
- Diode Type: Schottky
- External Depth: 1.37mm
- External Length / Height: 1.16mm
- External Width: 2.71mm
- Forward Current If Max: 520mA
- Junction Temperature Tj Max: 150°C
- Peak Forward Current: 1A
- Power Dissipation Ptot Max: 330mW
- Reverse Recovery Time trr Max: 3ns
- Reverse Recovery Time trr Typ: 3ns
- SMD Marking: 40
