Description

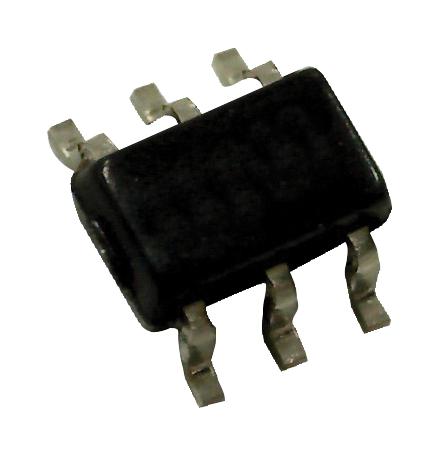

DIODES INC. - ZLLS2000 - Small Signal Schottky Diode, Single, 40 V, 1.16 A, 640 mV, 36 A, 150 °C
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 40V
- Forward Current If(AV): 1.16A
- Forward Voltage VF Max: 640mV
- Forward Surge Current Ifsm Max: 36A
- Operating Temperature Max: 150°C
- Diode Case Style: SOT-23
- No. of Pins: 6Pins
- Product Range: ZLLS2 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Current If @ Vf: 1.5A
- Current Ifsm: 36A
- Diode Type: Schottky
- External Depth: 3.1mm
- External Length / Height: 1.45mm
- External Width: 3.2mm
- Forward Current If Max: 2.2A
- Junction Temperature Tj Max: 150°C
- Peak Forward Current: 1.5A
- Power Dissipation Ptot Max: 1.1W
- Reverse Recovery Time trr Max: 6ns
- Reverse Recovery Time trr Typ: 6ns
- SMD Marking: L10
