Description

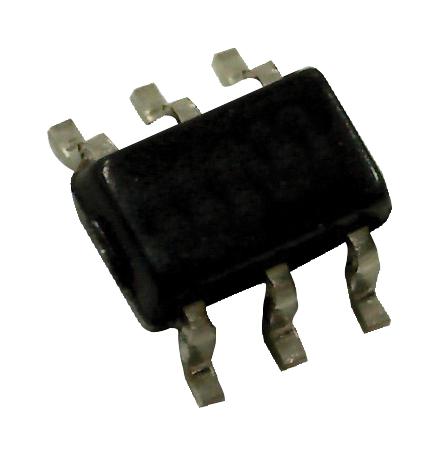

DIODES INC. - ZHCS2000 - Small Signal Schottky Diode, Single, 40 V, 2 A, 500 mV, 20 A, 125 °C
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 40V
- Forward Current If(AV): 2A
- Forward Voltage VF Max: 500mV
- Forward Surge Current Ifsm Max: 20A
- Operating Temperature Max: 125°C
- Diode Case Style: SOT-26
- No. of Pins: 6Pins
- Product Range: ZHCS2 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Current If @ Vf: 2A
- Current Ifsm: 20A
- Diode Type: Schottky
- External Depth: 3mm
- External Length / Height: 1.45mm
- External Width: 3mm
- Forward Current If Max: 2A
- Junction Temperature Tj Max: 125°C
- Peak Forward Current: 2A
- Power Dissipation Ptot Max: 1.1W
- Reverse Recovery Time trr Max: 5.5ns
- Reverse Recovery Time trr Typ: 5.5ns
- SMD Marking: ZS2
