Description

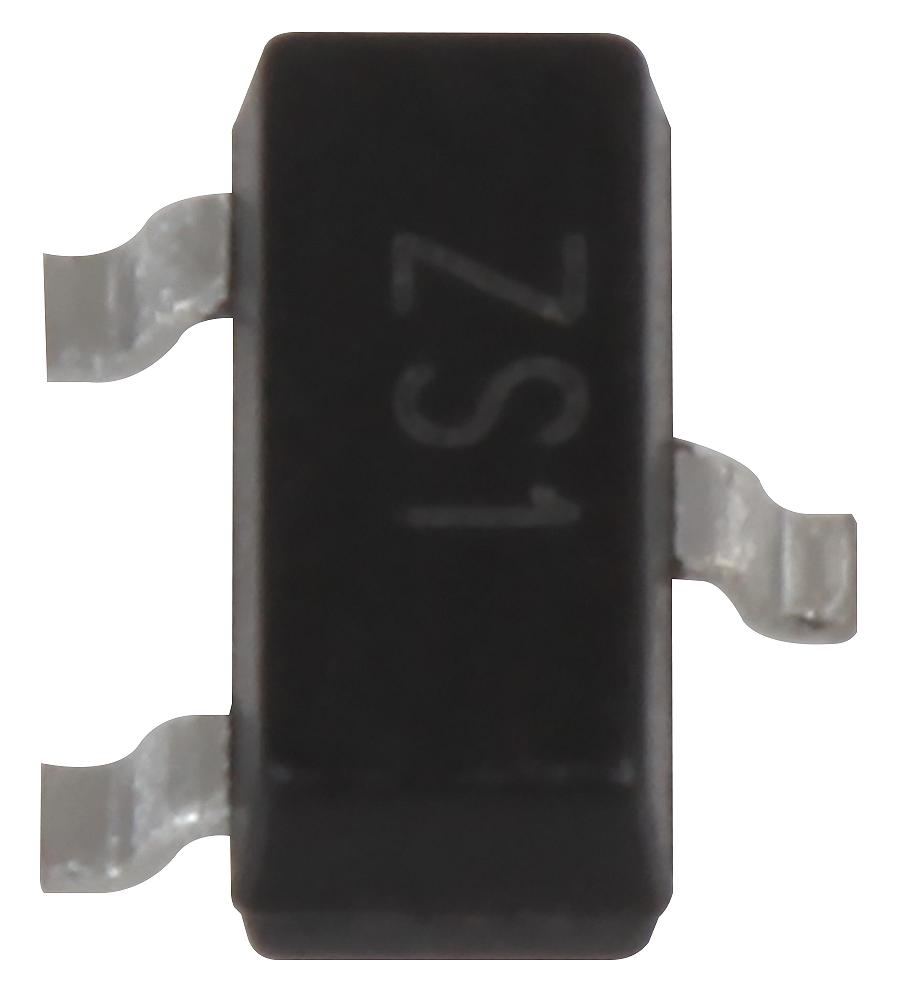

DIODES INC. - ZHCS1000TA - Schottky Rectifier, 40 V, 1 A, Single, SOT-23, 3 Pins, 425 mV
- Repetitive Reverse Voltage Vrrm Max: 40V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Diode Case Style: SOT-23
- No. of Pins: 3Pins
- Forward Voltage VF Max: 425mV
- Forward Surge Current Ifsm Max: 12A
- Operating Temperature Max: 125°C
- Product Range: ZHCS1 Series
- Automotive Qualification Standard: AEC-Q101
- SVHC: No SVHC (15-Jan-2019)
- Current If @ Vf: 1A
- Current Ifsm: 12A
- Diode Type: Schottky
- External Depth: 2.5mm
- External Length / Height: 1.12mm
- External Width: 3.05mm
- Forward Voltage: 425mV
- Junction Temperature Tj Max: 125°C
- Power Dissipation Ptot Max: 500mW
- Reverse Recovery Time trr Max: 12ns
- Reverse Recovery Time trr Typ: 12ns
- Reverse Voltage Vr Max: 40V
- SMD Marking: ZS1
- Semiconductor Technology: Si
