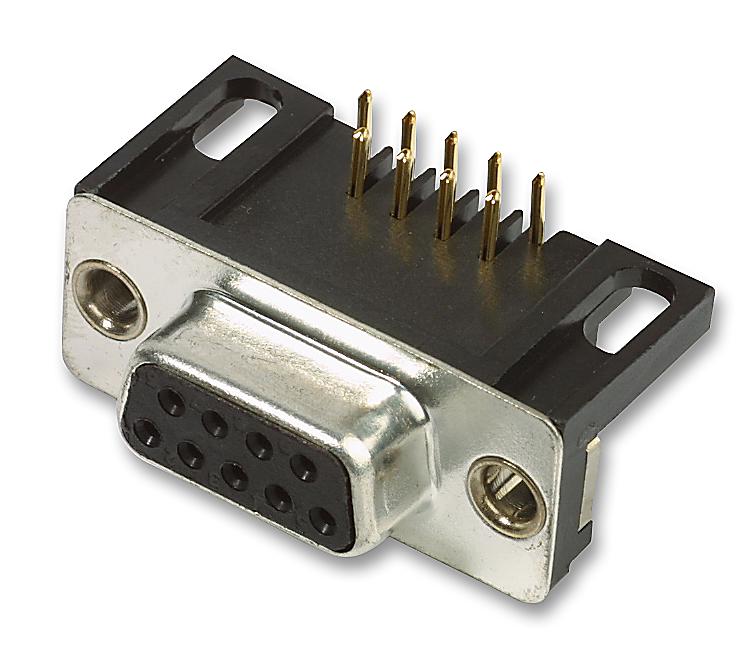

ITT CANNON - ZDE9S1AKN-146 - D Sub Connector, Right Angle, DB9, Standard, Receptacle, ZDE, 9 Contacts, DE, Solder
- No. of Contacts: 9Contacts
- Gender: Receptacle
- Contact Termination Type: Solder
- D Sub Shell Size: DE
- Product Range: ZDE Series
- Connector Body Material: Steel Body
- Contact Material: -
- Contact Plating: -
- Body Plating: Tin
- Case Material: Steel, tin plating
- Connector Mounting: Through Hole Mount Right Angle
- Contact Resistance: 20mohm
- Contact Termination: Solder
- Current Temperature: 60°C
- D Sub Connector Type: Standard
- DC Current Max: 5A
- Flammability Rating: UL94V-0
- Material: Steel
- No. of Mating Cycles: 50
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Termination Method: Through Hole
- Withstand Voltage: 1000V
- Working Voltage: 350V
