Description

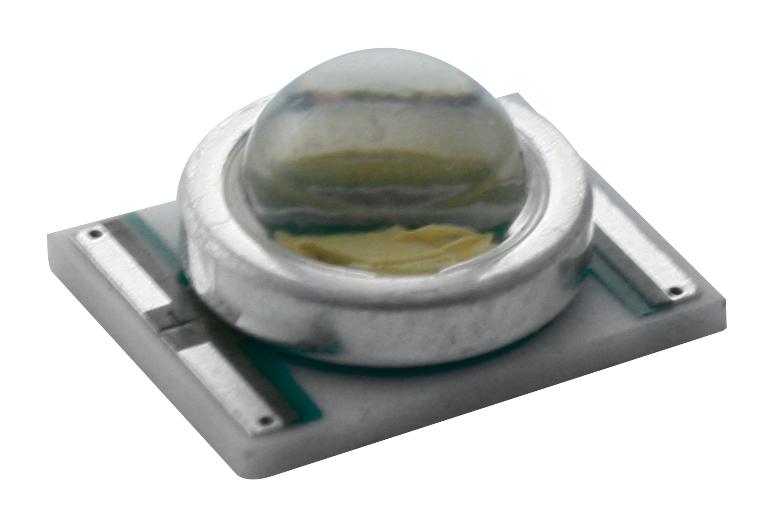

CREE LED - XREWHT-L1-0000-005E7 - High Brightness LED, XLamp XR-E, Warm White, 90 °, 62 lm, 3700 K, 700 mA
- Product Range: XLamp XR-E Series
- LED Colour: Warm White
- Viewing Angle: 90°
- Luminous Flux @ Test: 62lm
- CCT: 3700K
- Forward Current If Max: 700mA
- Forward Voltage @ Test: 3.3V
- Forward Current @ Test: 350mA
- Power Dissipation Pd: 4W
- SVHC: No SVHC (15-Jun-2015)
- Beam Pattern: Lambertian
- Colour Rendering Index: 80
- Colour Temperature Max: 3700K
- Colour Temperature Min: 2600K
- External Depth: 9mm
- External Length / Height: 4.4mm
- External Width: 7mm
- Forward Voltage VF Max: 3.5V
- LED Mounting: SMD
- Lens Colour: Clear
- Lens Shape: Dome
- No. of Pins: 2Pins
- Opto Case Style: 3529
- Peak Forward Current: 0.7A
- Power @ Test: 1.2W
- Reverse Protection Voltage: 5V
- Voltage Vf Typ: 3.5V
