Description

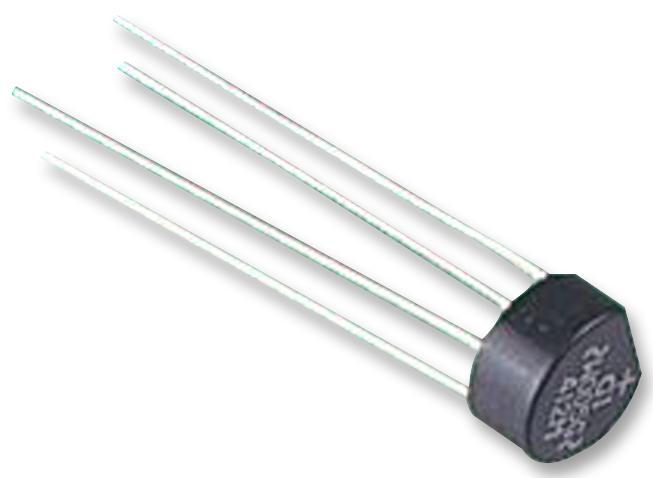

VISHAY - W01G-E4/51 - Bridge Rectifier, Single Phase, 100 V, 1.5 A, Through Hole, 4 Pins, 1 V
- No. of Phases: Single Phase
- Repetitive Reverse Voltage Vrrm Max: 100V
- Forward Current If(AV): 1.5A
- Bridge Rectifier Case Style: Through Hole
- Forward Voltage VF Max: 1V
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: W01G Series
- SVHC: Lead (15-Jan-2019)
- Current Ir Max: 5µA
- Device Marking: W01G
- Diode Mounting Type: Through Hole
- External Depth: 8.84mm
- External Length / Height: 5.6mm
- External Width: 8.6mm
- Forward Surge Current Ifsm Max: 50A
- Junction Temperature Tj Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- RMS Input Voltage: 70V
- Termination Type: Through Hole
- Voltage Vrsm: 70V
