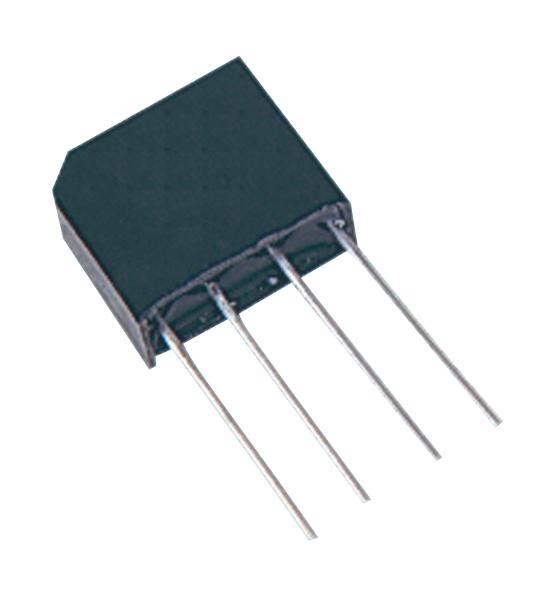

VISHAY - VS-2KBP04 - Bridge Rectifier, Single Phase, 400 V, 2 A, SIP, 4 Pins, 1 V
- No. of Phases: Single Phase
- Repetitive Reverse Voltage Vrrm Max: 400V
- Forward Current If(AV): 2A
- Bridge Rectifier Case Style: SIP
- Forward Voltage VF Max: 1V
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: VS-2K Series
- Body Height Max: 15.5mm
- Device Marking: 2KBP04
- Diode Mounting Type: Through Hole
- Diode Type: Bridge Rectifier
- External Depth: 7mm
- External Length / Height: 15.5mm
- External Width: 18mm
- Forward Surge Current Ifsm Max: 60A
- Height: 15.5mm
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -40°C
- Lead Spacing: 3.1mm
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +150°C
- Output Current Max: 2A
- RMS Input Voltage: 160V
