Description

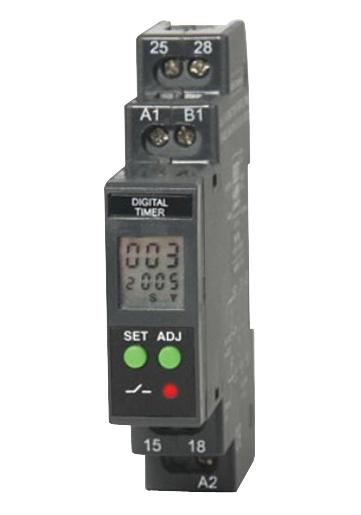

GIC - VODDTS1 - DIN Rail Digital Timer, Eliro, Multifunction, 0.1 s, 999 h, 1 Ranges, 3
- Product Range: Eliro Series
 - Timer Functions: Multifunction
 - Time Min: 0.1s
 - Time Max: 999h
 - No. of Timing Ranges: 1Ranges
 - No. of Digits: 3
 - Timer Output: 1 Changeover Relay
 - Supply Voltage Max: 240V
 - Current Rating Nom: 8A
 - Connection / Termination: Screw Terminals
 - SVHC: No SVHC (15-Jun-2015)
 - Contact Configuration: SPDT
 - Contact Current: 8A
 - Contact Current AC Max: 8A
 - Contact Current DC Max: 8A
 - Contact Voltage AC Max: 240V
 - Contact Voltage DC Max: 24V
 - Contact Voltage VAC: 240V
 - Contact Voltage VDC: 24V
 - Delay Time Range: 0.1s to 999h
 - External Depth: 76mm
 - External Length / Height: 89mm
 - External Width: 17.5mm
 - Nom Input Voltage: 240V
 - Operating Temperature Max: 55°C
 - Operating Temperature Min: -10°C
 - Relay Mounting: DIN Rail
 - Relay Terminals: Screw
 - Supply Voltage Range: 24V AC to 240V AC, 24V DC to 240V DC
 - Timing Adjustment: Pushbutton
