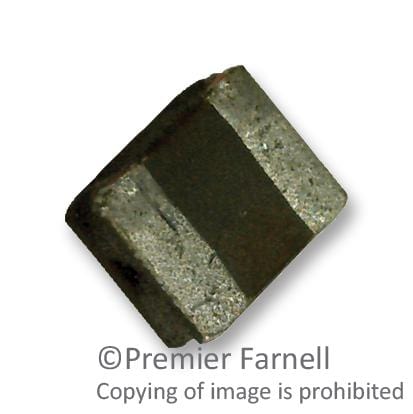

TDK - VLS201610HBX-R33M-1 - Power Inductor (SMD), 330 nH, 3.35 A, Shielded, 4.79 A, VLS-HBX-1, 2mm x 1.6mm x 1mm
- Inductance: 330nH
- RMS Current (Irms): 3.35A
- Inductor Construction: Shielded
- Saturation Current (Isat): 4.79A
- Product Range: VLS-HBX-1 Series
- Power Inductor Case: 2mm x 1.6mm x 1mm
- DC Resistance Max: 0.039ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
