Description

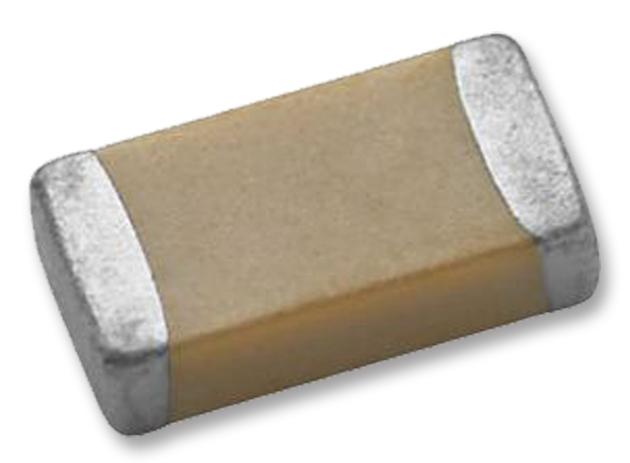

VISHAY - VJ0402D6R8CXCAJ - SMD Multilayer Ceramic Capacitor, 6.8 pF, 200 V, 0402 [1005 Metric], ± 0.25pF, C0G / NP0, VJ HIFREQ
- Capacitance: 6.8pF
- Voltage Rating: 200V
- Ceramic Capacitor Case: 0402 [1005 Metric]
- Capacitance Tolerance: ± 0.25pF
- Dielectric Characteristic: C0G / NP0
- Product Range: VJ HIFREQ Series
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 0.25pF
- Capacitor Terminals: SMD
- Operating Temperature Range: -55°C to +125°C
