Description

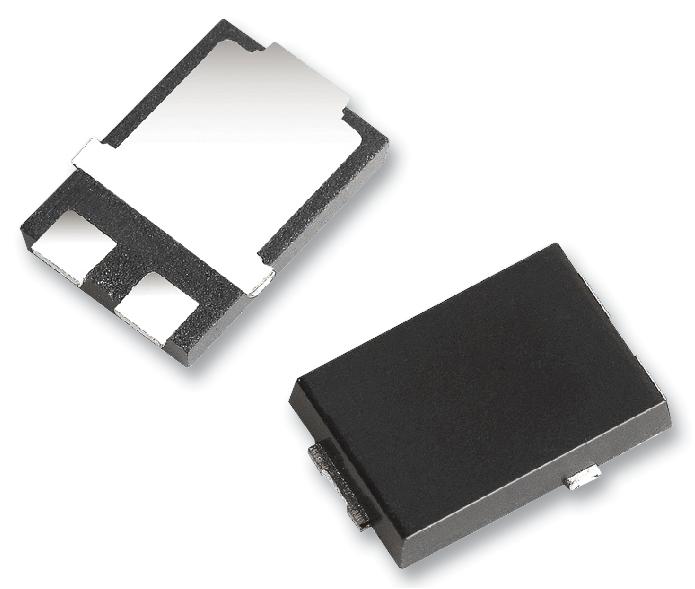

VISHAY - V12P10-M3/86A - Schottky Rectifier, 100 V, 12 A, Single, TO-277A, 3 Pins, 640 mV
- Repetitive Reverse Voltage Vrrm Max: 100V
- Forward Current If(AV): 12A
- Diode Configuration: Single
- Diode Case Style: TO-277A
- No. of Pins: 3Pins
- Forward Voltage VF Max: 640mV
- Forward Surge Current Ifsm Max: 200A
- Operating Temperature Max: 150°C
- Product Range: V12P1 Series
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- Avalanche Single Pulse Energy Eas: 100mJ
- Current Ifsm: 200A
- Diode Type: Schottky
- External Depth: 1.2mm
- External Length / Height: 6.15mm
- External Width: 4.75mm
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -40°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +150°C
- Semiconductor Technology: Si
- Termination Type: Surface Mount Device
