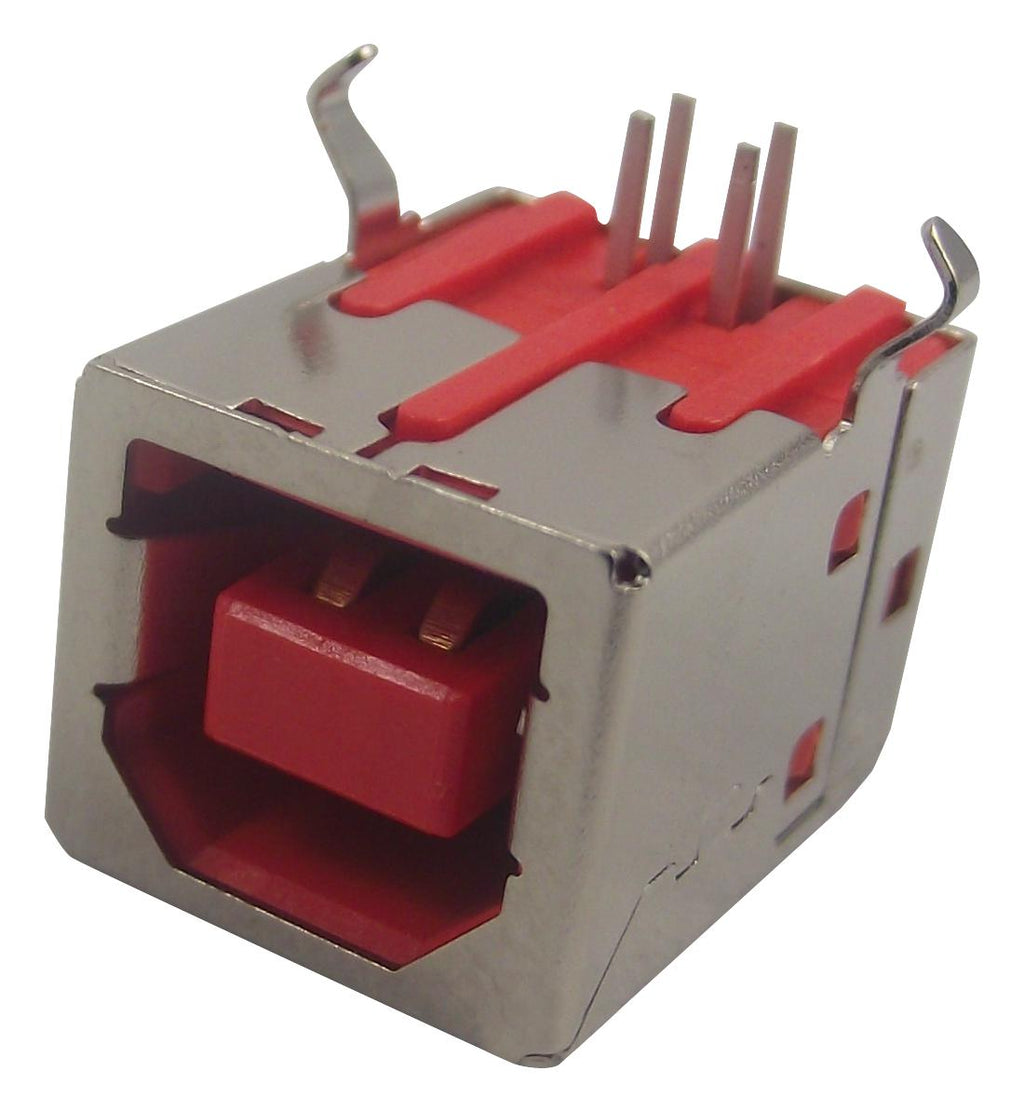

SAMTEC - USBR-B-S-S-O-TH - USB Connector, USB Type B, USB 2.0, Receptacle, 4 Ways, Through Hole Mount, Right Angle
- USB Connector Type: USB Type B
- USB Standard: USB 2.0
- Gender: Receptacle
- No. of Positions: 4Ways
- Connector Mounting: Through Hole Mount
- Orientation: Right Angle
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Product Range: USBR Series
- SVHC: No SVHC (15-Jan-2018)
- Connector Mounting Orientation: PC Board
- Connector Type: USB B
- Contact Resistance: 30mohm
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Current Rating: 1A
- No. of Contacts: 4Contacts
- No. of Mating Cycles: 1500
- Operating Temperature Max: 85°C
- Operating Temperature Min: -50°C
- Termination Method: Through Hole
- Voltage Rating VAC: 30V
