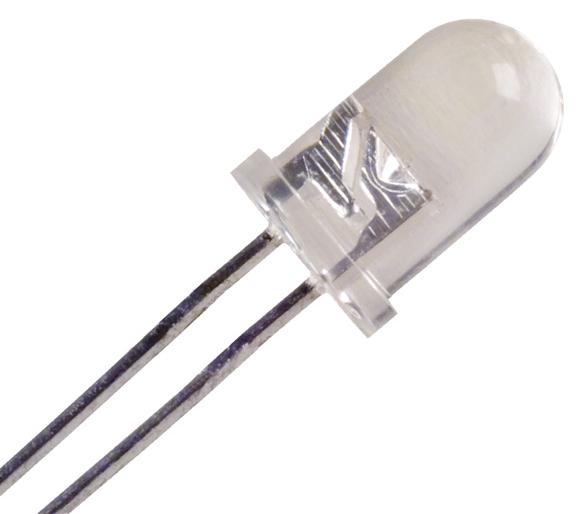

TSHG6200 Infrared Emitter 850nm T-1 3/4 Vishay

VISHAYSKU: TSHG6200 Order code: 1703549

Price:
Sale price€2,50

Tax included Shipping calculated at checkout

Stock:
In stock (4840 units), ready to be shipped

Documents et téléchargements

Description

VISHAY - TSHG6200 - Infrared Emitter, High Speed, 850 nm, 10 °, T-1 3/4 (5mm), 20 mW/Sr, 20 ns, 13 ns

  • Peak Wavelength: 850nm
  • Angle of Half Intensity: 10°
  • Diode Case Style: T-1 3/4 (5mm)
  • Radiant Intensity (Ie): 20mW/Sr
  • Rise Time: 20ns
  • Fall Time tf: 13ns
  • Forward Current If(AV): 100mA
  • Forward Voltage VF Max: 1.5V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • Product Range: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Viewing Angle: 10°
  • Wavelength Typ: 850nm
