Description

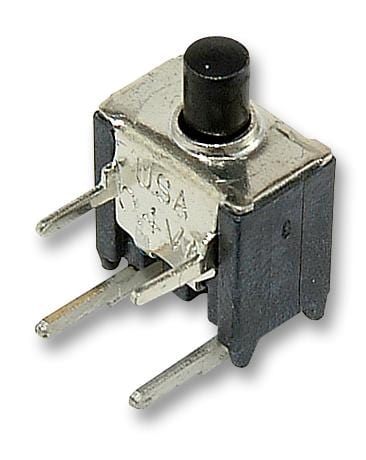

ALCOSWITCH - TE CONNECTIVITY - TPA11CGRA004 - Pushbutton Switch, TP, SPST, Momentary, Round Raised, Black
- Switch Operation: Momentary
- Contact Configuration: SPST
- Contact Voltage AC Nom: 20V
- Contact Voltage DC Nom: 20V
- Contact Current Max: -
- Switch Terminals: PC Pin
- Product Range: TP Series
- SVHC: No SVHC (27-Jun-2018)
- Actuation Type: Round
- Actuator / Cap Colour: Black
- Colour: Black
- Contact Resistance: 20mohm
- Contact Voltage VAC: 20V
- Contact Voltage VDC: 20V
- Dielectric Strength VDC: 1000V
- External Depth: 8.13mm
- External Length / Height: 5.74mm
- External Width: 8.13mm
- Illumination Colour: Non-illuminated
- Insulation Resistance: 1000Mohm
- No. of Electrical Operations: 60000
- Operating Temperature Max: 65°C
- Operating Temperature Min: -30°C
- Power Rating: 400mVA
- Pushbutton Actuator Style: Raised Round
- Pushbutton Switch Type: Standard
- Switch Mounting: Through Hole
