Description

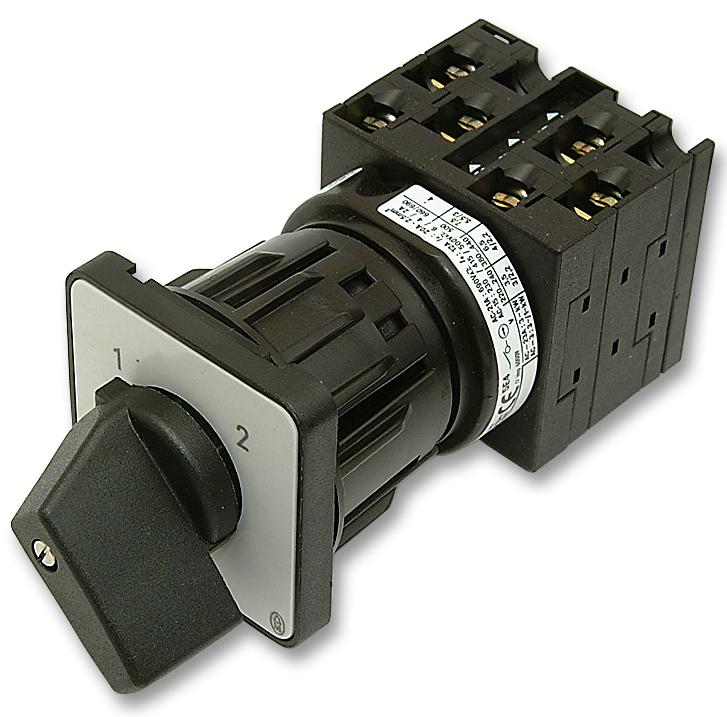

EATON MOELLER - TO-3-8222/EZ - Rotary Switch, 2 Position, 3 Pole, 90 °, 20 A, 690 V
- No. of Switch Positions: 2 Position
- No. of Poles: 3 Pole
- Angle of Throw: 90°
- Contact Current AC Max: 20A
- Contact Voltage AC Max: 690V
- Product Range: -
- Illumination: Non Illuminated
- Contact Current DC Max: 10A
- Contact Voltage DC Max: -
- SVHC: No SVHC (17-Dec-2015)
- Angle: 90°
- Current Rating: 20A
- External Depth: 35mm
- External Length / Height: 48mm
- External Width: 48mm
- IP / NEMA Rating: IP55
- Indexing Angle: 90°
- No. of Mechanical Operations: 1000000
- No. of Positions: 2Ways
- Operating Temperature Max: 50°C
- Operating Temperature Min: -25°C
