Description

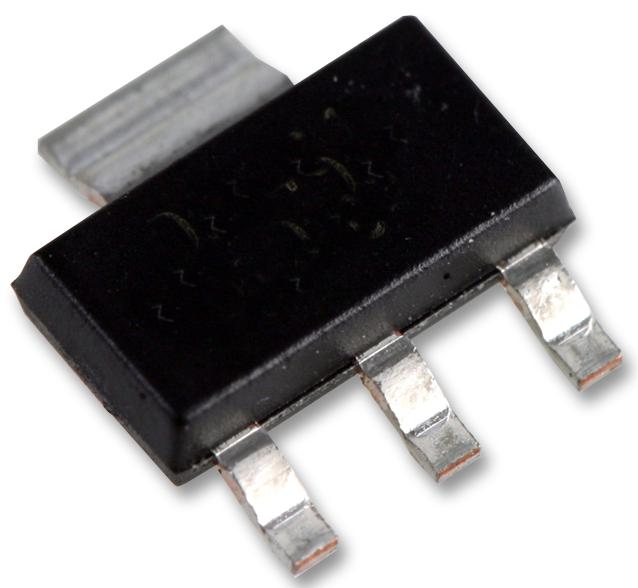

TEXAS INSTRUMENTS - TLV1117-50IDCY - Fixed LDO Voltage Regulator, 6.4V to 15V, 1.2V Dropout, 5Vout, 800mAout, SOT-223-3
- Output Type: Fixed
- Input Voltage Min: 6.4V
- Input Voltage Max: 15V
- Fixed Output Voltage Nom.: 5V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 800mA
- Dropout Voltage Vdo: 1.2V
- LDO Regulator Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 5V 800mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 1117
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Current Max: 0.8A
- Output Voltage Nom.: 5V
- Primary Input Voltage: 7V
- Supply Voltage Max: 15V
- Supply Voltage Min: 6.4V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: LDO Fixed Positive
