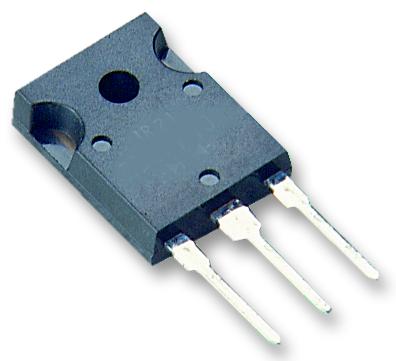

STMICROELECTRONICS - TIP3055 - Bipolar (BJT) Single Transistor, NPN, 70 V, 15 A, 90 W, TO-247, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 70V
- Transition Frequency ft: -
- Power Dissipation Pd: 90W
- DC Collector Current: 15A
- DC Current Gain hFE: 70hFE
- Transistor Case Style: TO-247
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Collector Emitter Saturation Voltage Vce(on): 1V
- Continuous Collector Current Ic Max: 15A
- Current Ic Continuous a Max: 15A
- Current Ic hFE: 4A
- Device Marking: TIP3055
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 2.5MHz
- Hfe Min: 20
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 90W
- Transistor Type: Bipolar
- Voltage Vcbo: 100V
