Description

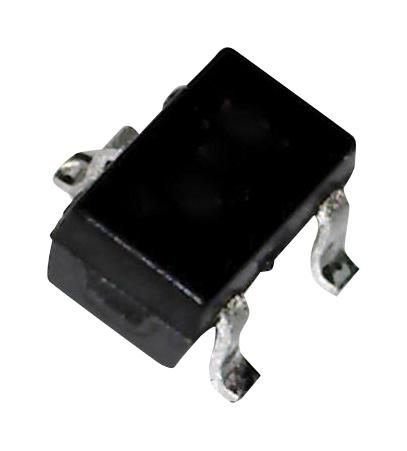

MICROCHIP - TCM809ZVLB713 - Reset Monitor 232V, Active-Low Reset, 1.2V-5.5Vin, SC-70-3
- Threshold Voltage: 2.32V
- No. of Supervisors / Monitors: 1Monitors
- Supply Voltage Min: 1.2V
- Supply Voltage Max: 5.5V
- Reset Type: Active-Low
- Digital IC Case: SC-70
- No. of Pins: 3Pins
- Delay Time: 320ms
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 809
- IC Generic Number: 809
- Lead Spacing: 1.3mm
- Logic Function Number: 809
- Microprocessor Support IC Type: Supervisory Circuit
- Operating Temperature Range: -40°C to +125°C
- Output Current Max: 20mA
- Row Pitch: 2.4mm
- Supply Current: 9µA
- Supply Voltage Range: 1.2V to 5.5V
