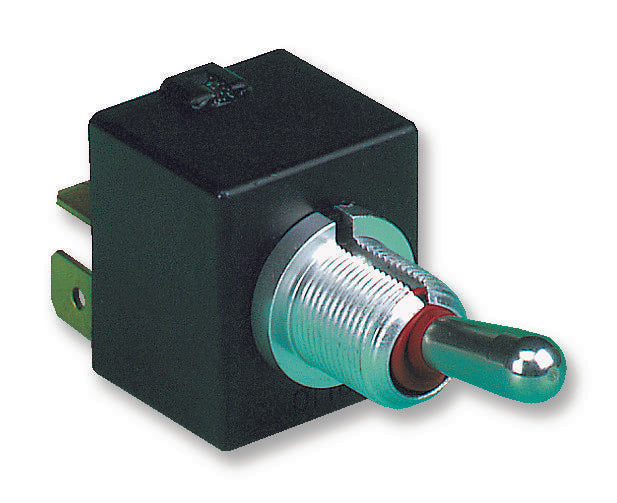

OTTO CONTROLS - T7212E5 - Toggle Switch, IP68S, (On)-Off-(On), DPDT, Non Illuminated, T7, Panel Mount, 16 A
- Switch Operation: (On)-Off-(On)
- Contact Configuration: DPDT
- Illumination: Non Illuminated
- Product Range: T7 Series
- Contact Current Max: 16A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 115V
- Switch Terminals: Quick Connect, Solder
- Contact Voltage DC Nom: 28V
- SVHC: No SVHC (20-Jun-2016)
- Actuation Type: Bat
- Bush Thread Length: 11.9mm
- Contact Current @ Contact Voltage AC Max: 8A
- Contact Current @ Contact Voltage DC Max: 16A
- Contact Current AC Max: 16A
- Contact Current DC Max: 16A
- Contact Voltage AC Max: 125V
- Contact Voltage DC Max: 28V
- External Depth: 21.8mm
- External Length / Height: 32.2mm
- External Width: 27.9mm
- Height: 32.2mm
- IP / NEMA Rating: IP68
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Thread Size: 15/32-32 NS-2A
