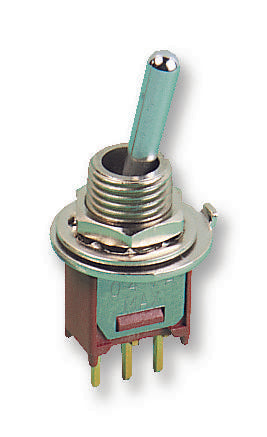

C&K COMPONENTS - T101STDCBE - Toggle Switch, On-On, SPDT, Non Illuminated, T, Panel Mount, 3 A
- Switch Operation: On-On
- Contact Configuration: SPDT
- Illumination: Non Illuminated
- Product Range: T Series
- Contact Current Max: 3A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 20V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 20V
- SVHC: Lead (15-Jan-2019)
- Actuation Type: Lever
- Bush Thread Length: 5.59mm
- Contact Current @ Contact Voltage AC Max: 20A
- Contact Current Rating: 0.4A
- Contact Resistance: 20mohm
- Contact Voltage AC Max: 20V
- Contact Voltage DC Max: 20V
- External Depth: 8.13mm
- External Length / Height: 8.64mm
- External Width: 5mm
- Height: 8.64mm
- No. of Electrical Operations: 60000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Switching Power Max: 0.4VA
- Thread Size: 1/4 x 40UNS-2A
