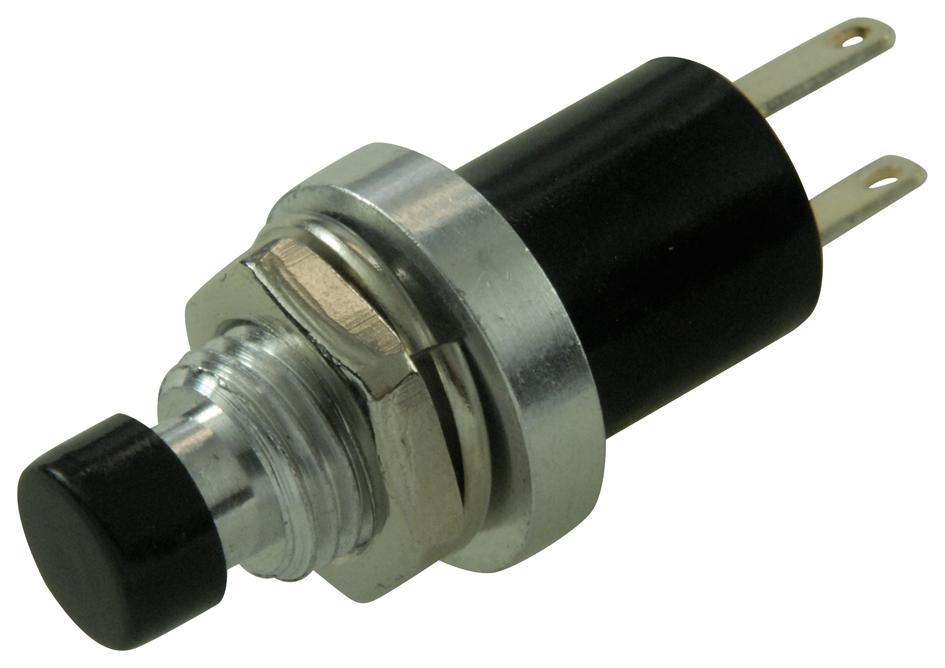

MULTICOMP PRO - SWITCH BLACK PUSH TO BREAK. - Pushbutton Switch, 7 mm, SPST-NC, Momentary, Round, Black
- Switch Operation: Momentary
- Contact Configuration: SPST-NC
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Contact Current Max: 500mA
- Switch Terminals: Solder Lug
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Actuator / Cap Colour: Black
- Colour: Black
- Contact Current AC Max: 500mA
- Contact Voltage VAC: 250V
- External Diameter: 9.5mm
- External Length / Height: 30mm
- Illumination Colour: Non-illuminated
- Panel Cutout Diameter: 7mm
- Pushbutton Actuator Style: Round
- Pushbutton Switch Type: Standard
- Switch Mounting: Panel
