Description

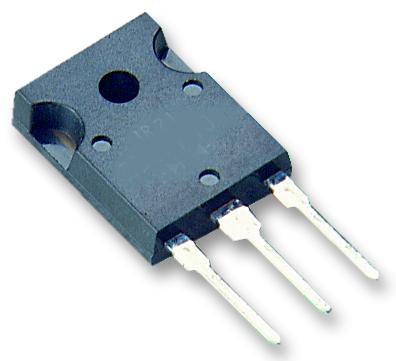

STMICROELECTRONICS - STW13NK100Z - Power MOSFET, N Channel, 1 kV, 13 A, 0.7 ohm, TO-247, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 13A
- Drain Source Voltage Vds: 1kV
- On Resistance Rds(on): 0.7ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3.75V
- Power Dissipation Pd: 350W
- Transistor Case Style: TO-247
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: STW Series
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Current Id Max: 13A
- On State resistance @ Vgs = 10V: 700mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Through Hole
- Voltage Vds Typ: 1kV
- Voltage Vgs Max: 3.75V
- Voltage Vgs Rds on Measurement: 10V
