Description

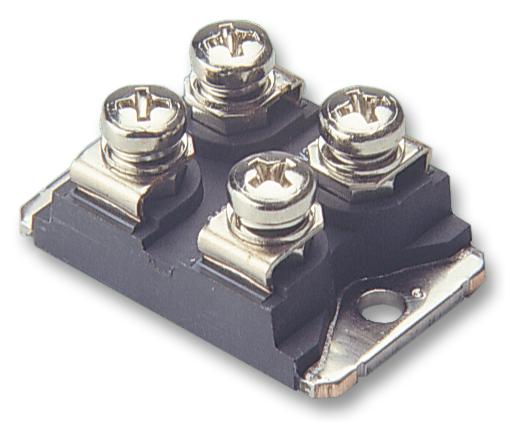

STMICROELECTRONICS - STTH12012TV1 - Fast / Ultrafast Diode, 1.2 kV, 60 A, Dual Isolated, 1.3 V, 50 ns, 420 A
- Repetitive Reverse Voltage Vrrm Max: 1.2kV
- Forward Current If(AV): 60A
- Diode Configuration: Dual Isolated
- Forward Voltage VF Max: 1.3V
- Reverse Recovery Time trr Max: 50ns
- Forward Surge Current Ifsm Max: 420A
- Operating Temperature Max: 150°C
- Diode Case Style: ISOTOP
- No. of Pins: 4 Pin
- Product Range: STTH1 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Current If @ Vf: 60A
- Current Ifsm: 420A
- Current Ir Max: 30µA
- Diode Module Configuration: Dual Isolated
- Diode Type: Fast Recovery
- Forward Voltage: 1.3V
- Junction Temperature Tj Max: 150°C
- Module Configuration: Dual
- No. of Pins: 4Pins
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Reverse Voltage Vr Max: 1.2kV
- Termination Type: Screw
