Description

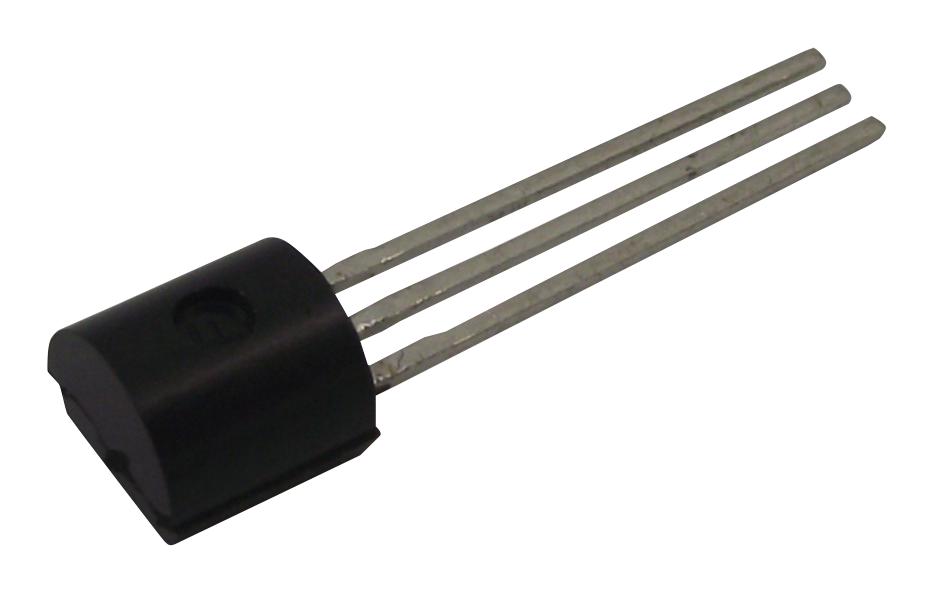

STMICROELECTRONICS - STQ1HNK60R-AP - Power MOSFET, N Channel, 600 V, 400 mA, 8 ohm, TO-92, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 400mA
- Drain Source Voltage Vds: 600V
- On Resistance Rds(on): 8ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 3W
- Transistor Case Style: TO-92
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Current Id Max: 400mA
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Through Hole
- Transistor Type: Power MOSFET
- Voltage Vds Typ: 600V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
