Description

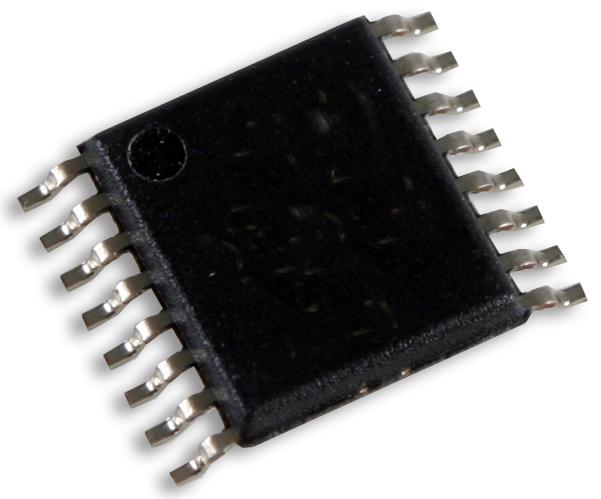

STMICROELECTRONICS - STPIC6C595TTR - LED Driver, 8 Bit Shift Register, 8 Outputs, 4.5 V to 5.5 V Input, 33V Clamp/100 mA Out, TSSOP-16
- Logic Family / Base Number: STPIC6C595
- Shift Register Function: Serial to Parallel
- No. of Elements: 1 Element
- No. of Bits Per Element: 8bit
- Logic Case Style: TSSOP
- No. of Pins: 16Pins
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- IC Output Type: Standard
- Logic IC Family: -
- Logic IC Base Number: -
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (07-Jul-2017)
- Driver Case Style: TSSOP
- Input Voltage Max: 5.5V
- Input Voltage Min: 4.5V
- No. of Outputs: 8Outputs
- Output Current: 100mA
- Output Voltage: 33V
