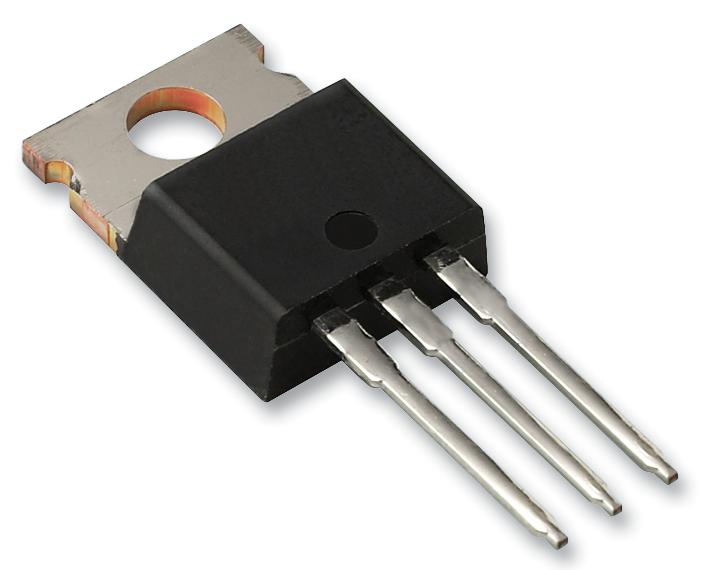

STMICROELECTRONICS - STP80NF55-06 - Power MOSFET, N Channel, 55 V, 80 A, 0.0065 ohm, TO-220, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 80A
- Drain Source Voltage Vds: 55V
- On Resistance Rds(on): 0.0065ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 300W
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: STP Series
- Automotive Qualification Standard: -
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (17-Dec-2015)
- Avalanche Single Pulse Energy Eas: 1300mJ
- Capacitance Ciss Typ: 4400pF
- Current Id Max: 80A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Pulse Current Idm: 320A
- Termination Type: Through Hole
- Voltage Vds: 55V
- Voltage Vds Typ: 55V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4V
- Voltage Vgs th Min: 2V
