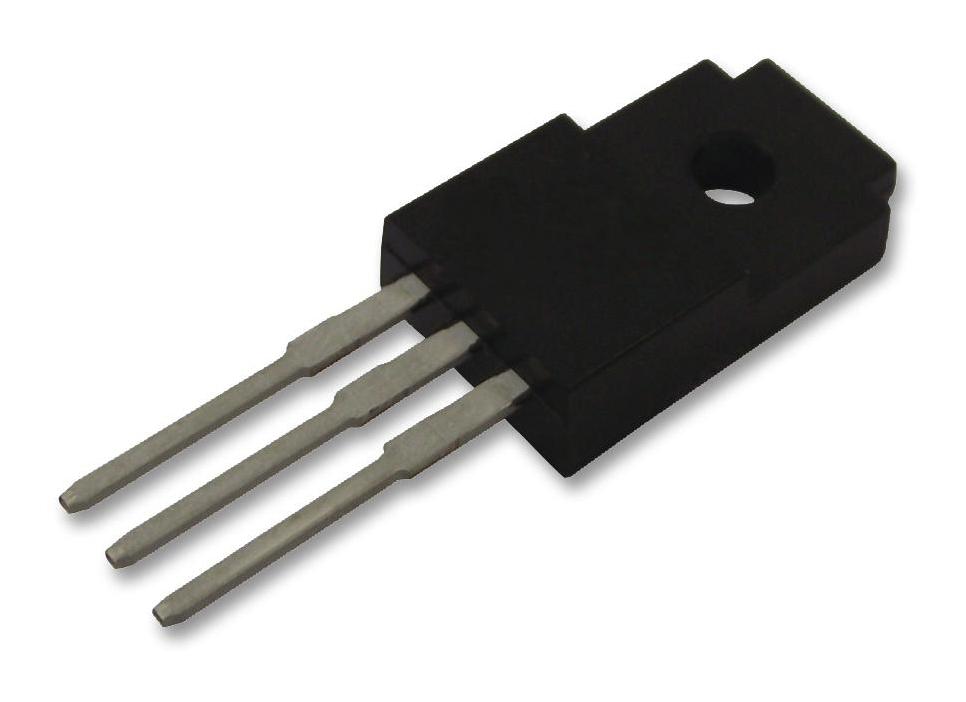

STMICROELECTRONICS - STP4NK60ZFP - Power MOSFET, N Channel, 600 V, 4 A, 2 ohm, TO-220FP, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 4A
- Drain Source Voltage Vds: 600V
- On Resistance Rds(on): 2ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3.75V
- Power Dissipation Pd: 25W
- Transistor Case Style: TO-220FP
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Avalanche Single Pulse Energy Eas: 120mJ
- Capacitance Ciss Typ: 510pF
- Current Iar: 4A
- Current Id Max: 4A
- On State resistance @ Vgs = 10V: 2ohm
- Pulse Current Idm: 16A
- Termination Type: Through Hole
- Voltage Vds: 600V
- Voltage Vds Typ: 600V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4.5V
- Voltage Vgs th Min: 3V
