Description

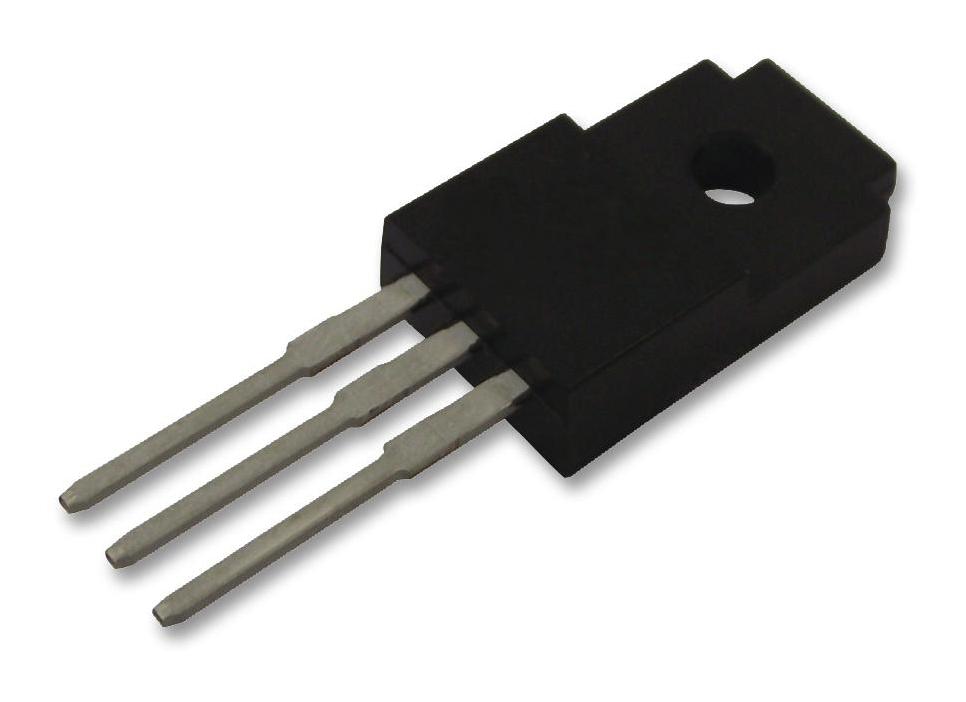

STMICROELECTRONICS - STP17NK40ZFP - Power MOSFET, N Channel, 400 V, 5.4 A, 0.25 ohm, TO-220FP, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 5.4A
- Drain Source Voltage Vds: 400V
- On Resistance Rds(on): 0.25ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3.75V
- Power Dissipation Pd: 35W
- Transistor Case Style: TO-220FP
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Cont Current Id @ 100°C: 3.4A
- Current Id Max: 15A
- On State resistance @ Vgs = 10V: 250mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 21.6A
- Voltage Vds Typ: 400V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
