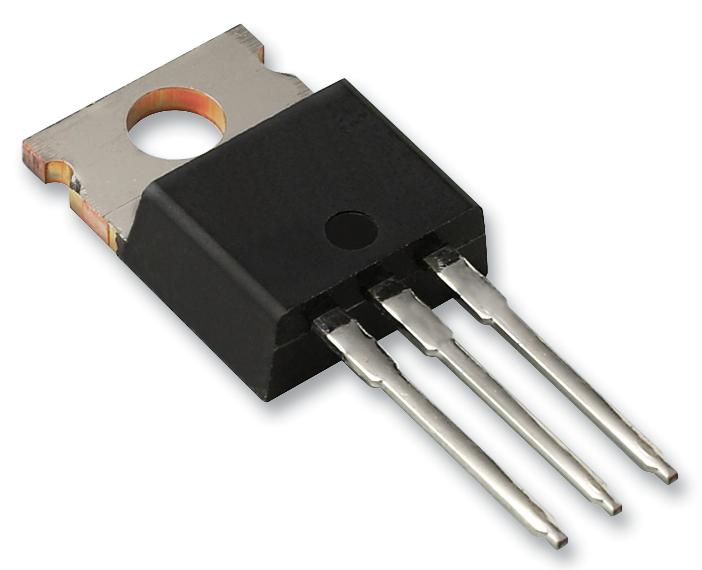

STMICROELECTRONICS - STP100NF04 - Power MOSFET, N Channel, 40 V, 120 A, 0.0046 ohm, TO-220AB, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 120A
- Drain Source Voltage Vds: 40V
- On Resistance Rds(on): 0.0046ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 300W
- Transistor Case Style: TO-220AB
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Current Id Max: 120A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- Lead Spacing: 2.54mm
- No. of Transistors: 1
- On State resistance @ Vgs = 10V: 4.6mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Pin Format: 1 g
- Pulse Current Idm: 480A
- Voltage Vds Typ: 40V
- Voltage Vgs Max: 4V
- Voltage Vgs Rds on Measurement: 10V
