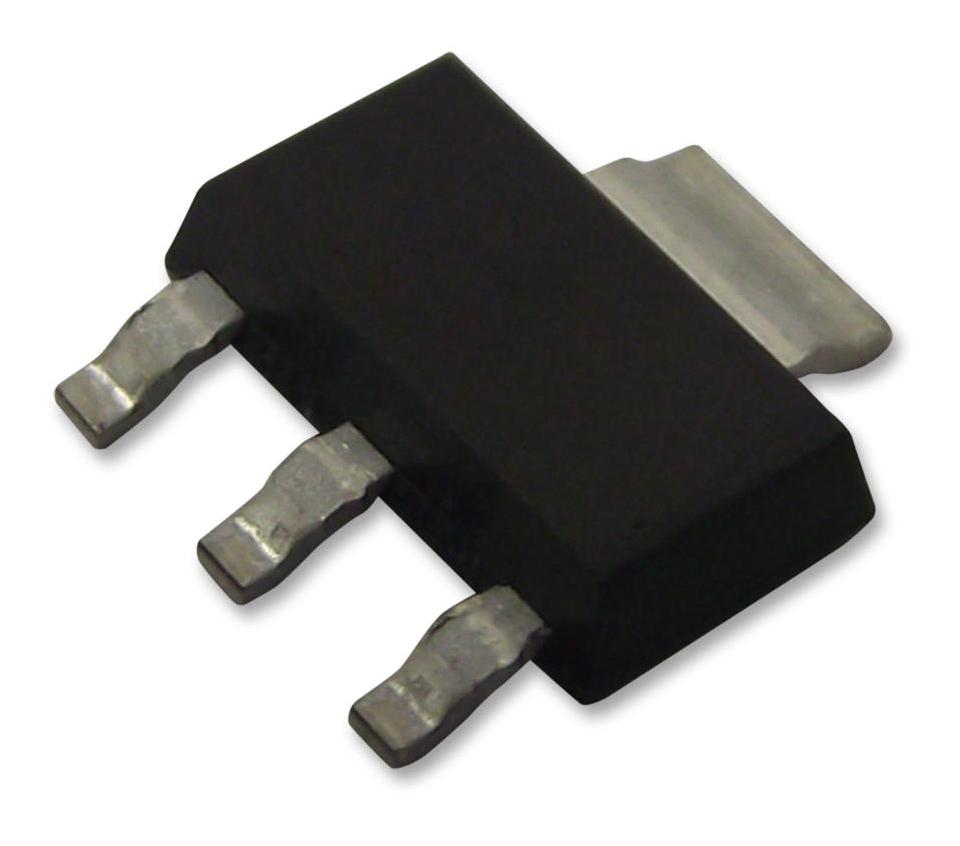

STMICROELECTRONICS - STN3NF06 - Power MOSFET, N Channel, 60 V, 1.5 A, 0.07 ohm, SOT-223, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 1.5A
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 0.07ohm
- Rds(on) Test Voltage Vgs: 20V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 3.3W
- Transistor Case Style: SOT-223
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Current Id Max: 4A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Transistor Type: Power MOSFET
- Voltage Vds Typ: 60V
- Voltage Vgs Max: 3V
- Voltage Vgs Rds on Measurement: 10V
