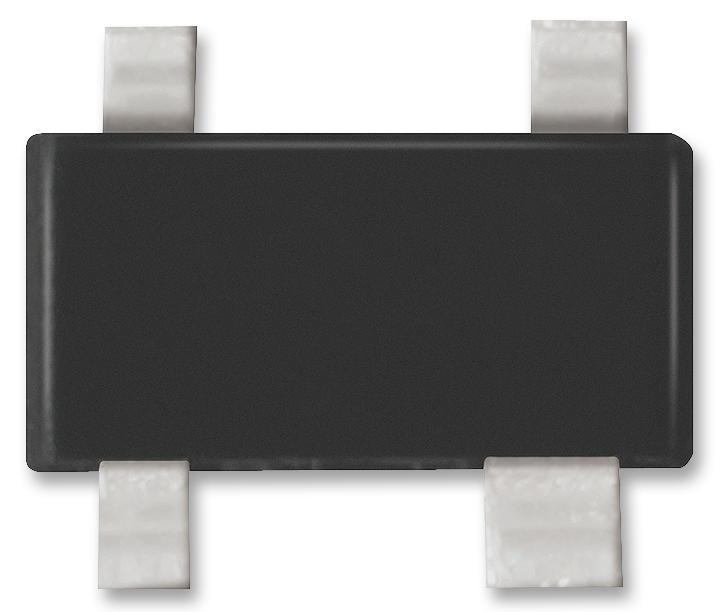

STMICROELECTRONICS - STM811SW16F - Reset Circuit, 1.2V-5.5V Supply, 2.93V Threshold, 20µs Delay, Active-High/Low, Push-Pull, SOT-143-4
- Threshold Voltage: 2.93V
- No. of Supervisors / Monitors: 1Monitors
- Supply Voltage Min: 1.2V
- Supply Voltage Max: 5.5V
- Reset Type: Active-Low
- Digital IC Case: SOT-143
- No. of Pins: 4Pins
- Delay Time: 210ms
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Base Number: 811
- IC Generic Number: 811
- Logic Function Number: 811
- Microprocessor Support IC Features: Active Low, Push-Pull
- Microprocessor Support IC Type: Low Power Reset Circuit
- Operating Temperature Range: -40°C to +85°C
- Output Current Max: 20mA
- Supply Current: 7µA
- Supply Voltage Range: 1.2V to 5.5V
- Voltage Vcc: 3.3V
- Voltage Vcc Max: 7V
- Voltage Vcc Min: -0.3V
