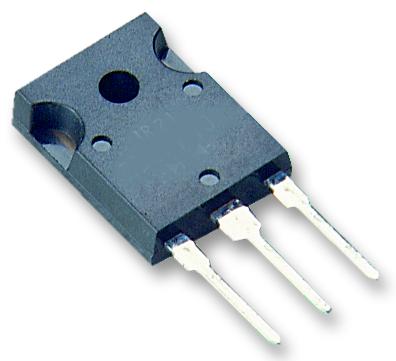

STMICROELECTRONICS - STGW20NC60VD - IGBT, 60 A, 2.5 V, 200 W, 600 V, TO-247, 3 Pins
- DC Collector Current: 60A
- Collector Emitter Saturation Voltage Vce(on): 2.5V
- Power Dissipation Pd: 200W
- Collector Emitter Voltage V(br)ceo: 600V
- Transistor Case Style: TO-247
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Current Ic @ Vce Sat: 20A
- Current Ic Continuous a Max: 60A
- Current Temperature: 25°C
- Fall Time tf: 75ns
- Full Power Rating Temperature: 25°C
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Max: 200W
- Power Dissipation Ptot Max: 200W
- Pulsed Current Icm: 100A
- Rise Time: 11.5ns
- Termination Type: Through Hole
- Transistor Polarity: N Channel
- Transistor Type: IGBT
- Voltage Vces: 600V
