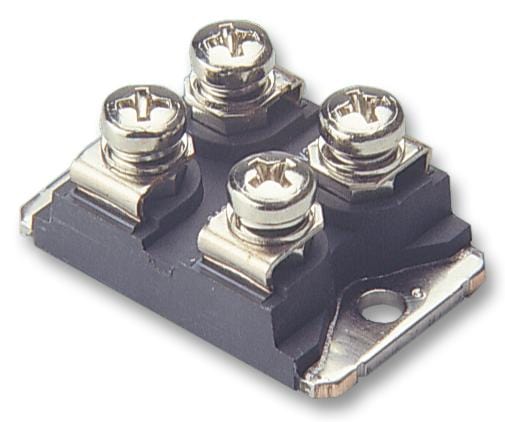

STE53NC50 MOSFET, N, Sot-227B STMICROELECTRONICS

STMICROELECTRONICSSKU: STE53NC50 Order code: 9946390

Price:
Sale price€56,10

Tax included Shipping calculated at checkout

Stock:
In stock (77 units), ready to be shipped

Documents et téléchargements

Description

STMICROELECTRONICS - STE53NC50 - Power MOSFET, N Channel, 500 V, 53 A, 0.08 ohm, ISOTOP, Module

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 53A
  • Drain Source Voltage Vds: 500V
  • On Resistance Rds(on): 0.08ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 3V
  • Power Dissipation Pd: 460W
  • Transistor Case Style: ISOTOP
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (17-Dec-2015)
  • Current Id Max: 54A
  • Current Temperature: 25°C
  • External Depth: 38mm
  • External Length / Height: 12.2mm
  • External Width: 25.4mm
  • Fixing Centres: 31.6mm
  • Full Power Rating Temperature: 25°C
  • Isolation Voltage: 2.5kV
  • Junction Temperature Tj Max: 150°C
  • No. of Transistors: 1
  • On State resistance @ Vgs = 10V: 80mohm
  • Pulse Current Idm: 212A
  • Voltage Vds Typ: 500V
  • Voltage Vgs Max: 3V
  • Voltage Vgs Rds on Measurement: 10V
  • Voltage Vgs th Max: 4V
