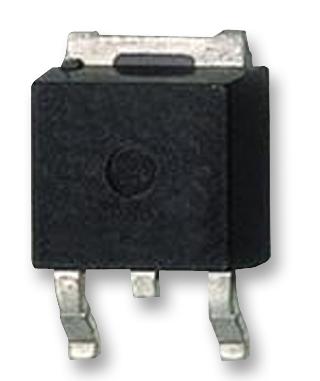

STMICROELECTRONICS - STD5NM60T4 - Power MOSFET, N Channel, 650 V, 5 A, 1 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 5A
- Drain Source Voltage Vds: 650V
- On Resistance Rds(on): 1ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 96W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Alternate Case Style: D-PAK
- Current Id Max: 5A
- External Depth: 10.5mm
- External Length / Height: 2.55mm
- External Width: 6.8mm
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 20A
- Voltage Vds Typ: 600V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
