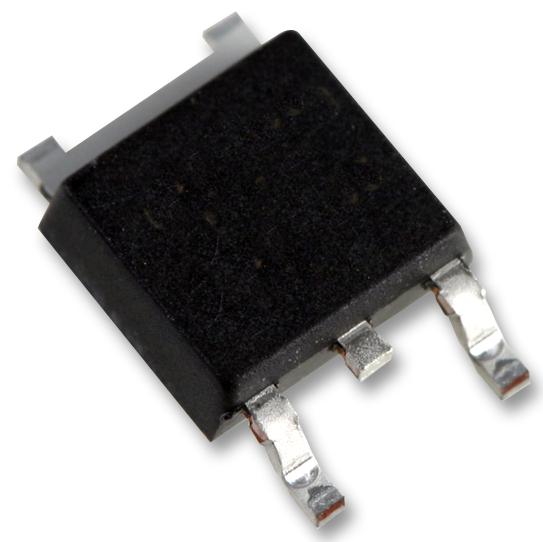

STMICROELECTRONICS - STD20NF20 - Power MOSFET, N Channel, 200 V, 18 A, 0.125 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: N Channel
 - Continuous Drain Current Id: 18A
 - Drain Source Voltage Vds: 200V
 - On Resistance Rds(on): 0.125ohm
 - Rds(on) Test Voltage Vgs: 10V
 - Threshold Voltage Vgs: 3V
 - Power Dissipation Pd: 90W
 - Transistor Case Style: TO-252
 - No. of Pins: 3Pins
 - Operating Temperature Max: 150°C
 - Product Range: -
 - Automotive Qualification Standard: -
 - MSL: MSL 1 - Unlimited
 - SVHC: No SVHC (17-Dec-2015)
 - Current Id Max: 18A
 - On State resistance @ Vgs = 10V: 125mohm
 - Operating Temperature Min: -55°C
 - Operating Temperature Range: -55°C to +150°C
 - Pulse Current Idm: 72A
 - SMD Marking: 20NF20
 - Termination Type: Surface Mount Device
 - Voltage Vds Typ: 200V
 - Voltage Vgs Max: 20V
 - Voltage Vgs Rds on Measurement: 10V
 - Voltage Vgs th Max: 4V
