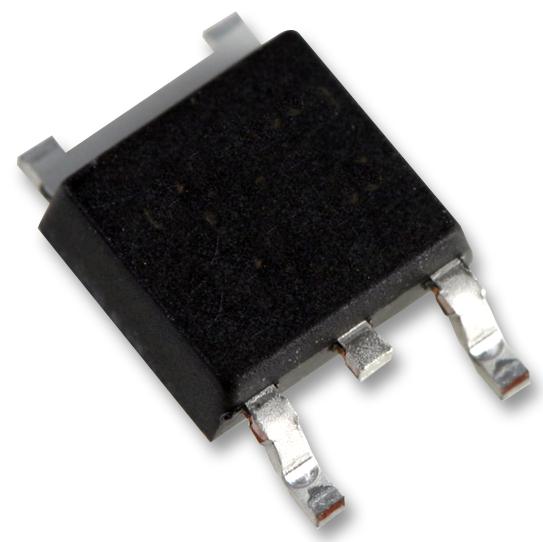

STD1802T4 TRANSISTOR, NPN, D-PAK STMICROELECTRONICS

STMICROELECTRONICSSKU: STD1802T4 Order code: 1297984

Price:
Sale price€2,00

Tax included Shipping calculated at checkout

Stock:
In stock (1486 units), ready to be shipped

Documents et téléchargements

Description

STMICROELECTRONICS - STD1802T4 - Bipolar (BJT) Single Transistor, General Purpose, NPN, 60 V, 3 A, 15 W, TO-252 (DPAK)

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 60V
  • Transition Frequency ft: 150MHz
  • Power Dissipation Pd: 15W
  • DC Collector Current: 3A
  • DC Current Gain hFE: 200hFE
  • Transistor Case Style: TO-252
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (17-Dec-2015)
  • Collector Emitter Saturation Voltage Vce(on): 300mV
  • Continuous Collector Current Ic Max: 3A
  • Current Gain Hfe Max: 400
  • Current Ic Continuous a Max: 3A
  • Current Ic hFE: 100mA
  • Current Ic hfe -Do Not Use See ID 1182: 100mA
  • DC Current Gain Hfe Max: 400
  • DC Current Gain Hfe Min: 200
  • Gain Bandwidth ft Min: 150MHz
  • Gain Bandwidth ft Typ: 150MHz
  • Hfe Min: 200
  • Power Dissipation Ptot Max: 15W
  • Saturation Current (Isat): 2A
  • Termination Type: Surface Mount Device
  • Voltage Vcbo: 80V
  • Voltage Vceo Sat: 0.3V
