Description

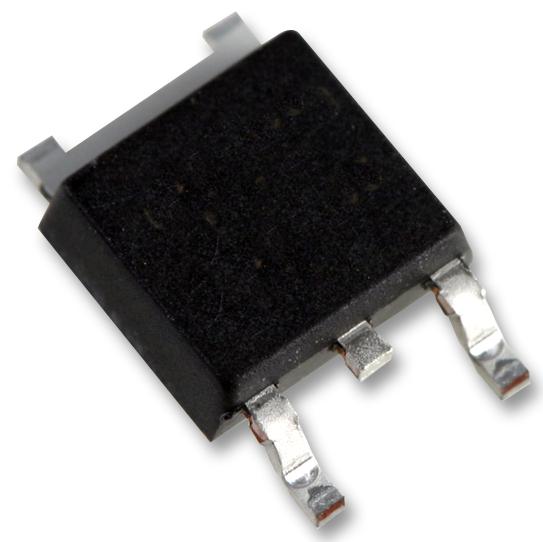

STMICROELECTRONICS - STD17NF03LT4 - Power MOSFET, N Channel, 30 V, 17 A, 0.05 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 17A
- Drain Source Voltage Vds: 30V
- On Resistance Rds(on): 0.05ohm
- Rds(on) Test Voltage Vgs: 16V
- Threshold Voltage Vgs: 1.5V
- Power Dissipation Pd: 30W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Current Id Max: 17A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Pulse Current Idm: 68A
- Termination Type: Surface Mount Device
- Voltage Vds: 30V
- Voltage Vds Typ: 30V
- Voltage Vgs Max: 1.5V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 2.2V
- Voltage Vgs th Min: 1V
