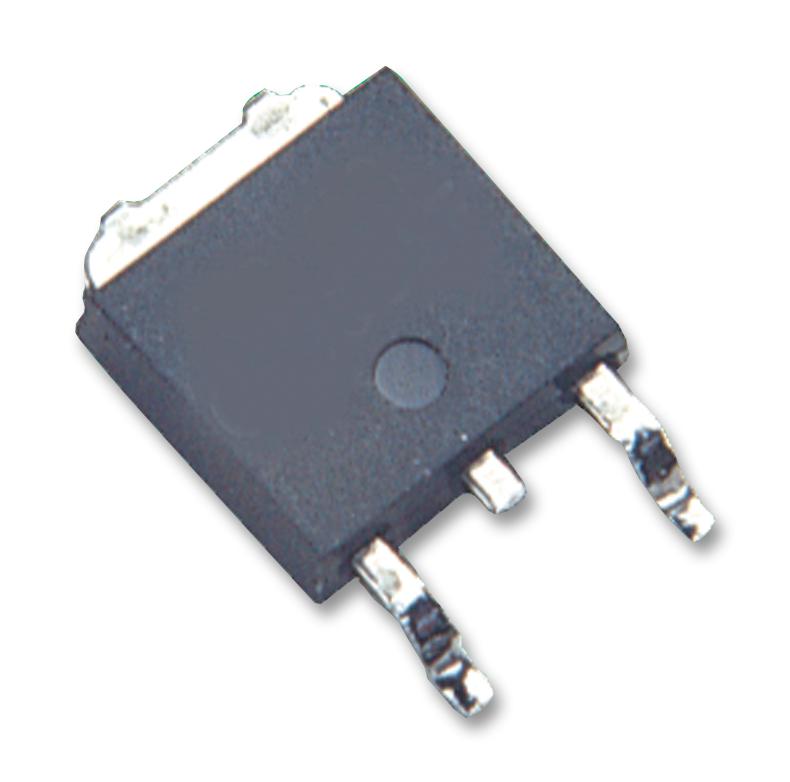

STMICROELECTRONICS - STB60NF06LT4 - Power MOSFET, N Channel, 60 V, 60 A, 0.016 ohm, TO-263 (D2PAK), Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 60A
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 0.016ohm
- Rds(on) Test Voltage Vgs: 5V
- Threshold Voltage Vgs: 1V
- Power Dissipation Pd: 110W
- Transistor Case Style: TO-263
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q101
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Avalanche Single Pulse Energy Eas: 320mJ
- Capacitance Ciss Typ: 2000pF
- Current Id Max: 60A
- Junction Temperature Tj Max: 175°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +175°C
- Pulse Current Idm: 240A
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 60V
- Voltage Vgs Max: 1V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Min: 1V
