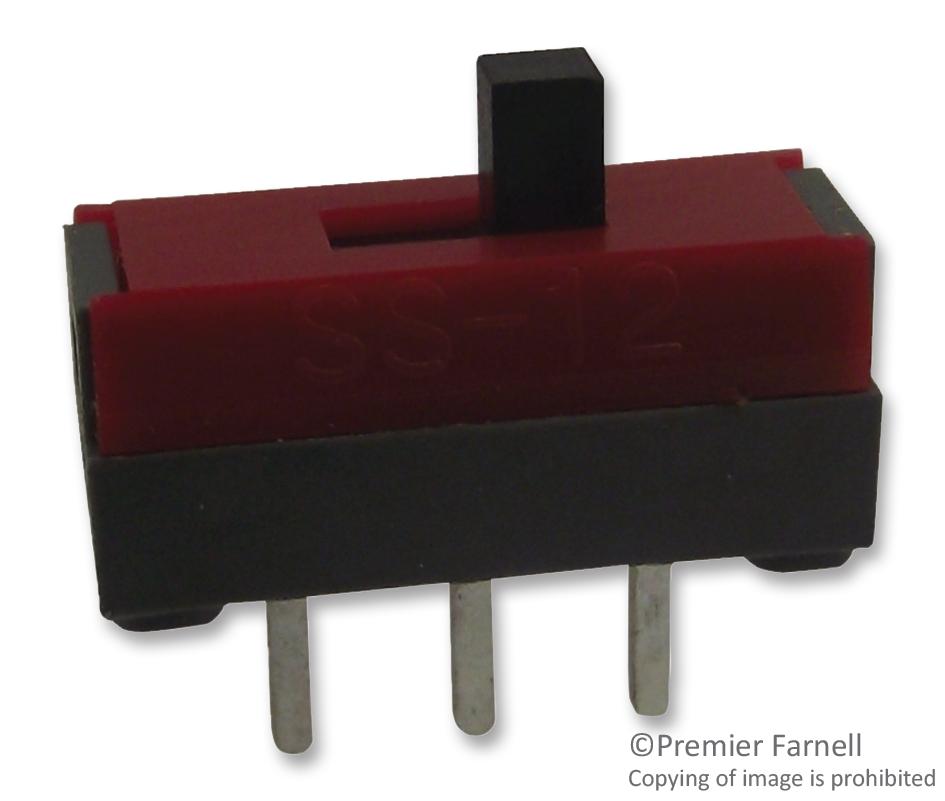

NKK SWITCHES - SS12SDP2 - Slide Switch, SPDT, On-None-On, Through Hole, SS, 100 mA
- Contact Configuration: SPDT
- Switch Operation: On-None-On
- Switch Mounting: Through Hole
- Product Range: SS Series
- Contact Current Max: 100mA
- Contact Voltage AC Max: -
- Contact Voltage DC Max: 30V
- Orientation: Vertical
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Raised
- Actuator Type: Raised Slide
- Contact Current DC Max: 0.1A
- Contact Resistance: 20mohm
- Dielectric Strength VDC: 500VAC
- External Depth: 4mm
- External Length / Height: 4.5mm
- External Width: 10.2mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500VDC
- Lead Spacing: 2.54mm
- Lever Length: 2mm
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 10000
- Operating Temperature Max: 60°C
- Operating Temperature Min: -15°C
- Pin Length: 3mm
- Termination Method: Top Actuated
- Travel: 2mm
