Documents et téléchargements
Description

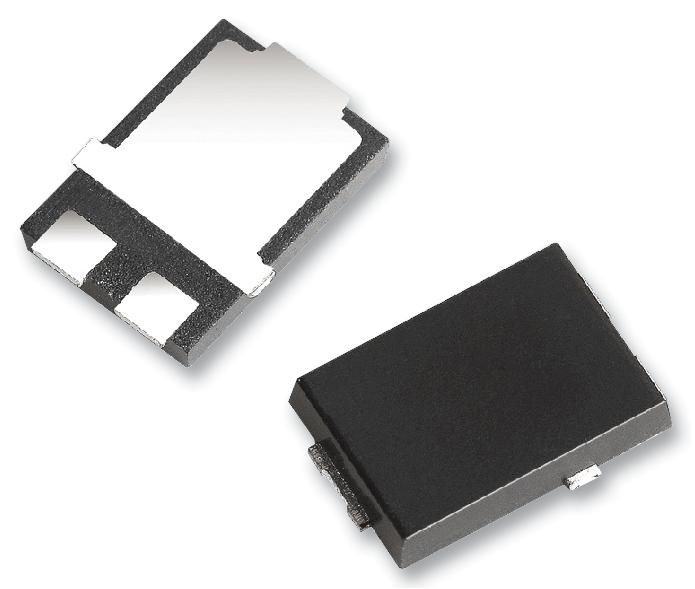

VISHAY - SS12P2L-M3/86A - Schottky Rectifier, 20 V, 12 A, Single, TO-277A, 3 Pins, 560 mV
- Repetitive Reverse Voltage Vrrm Max: 20V
- Forward Current If(AV): 12A
- Diode Configuration: Single
- Diode Case Style: TO-277A
- No. of Pins: 3Pins
- Forward Voltage VF Max: 560mV
- Forward Surge Current Ifsm Max: 280A
- Operating Temperature Max: 150°C
- Product Range: SS12P Series
- Automotive Qualification Standard: -
- Diode Type: Schottky
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Semiconductor Technology: Si
