Description

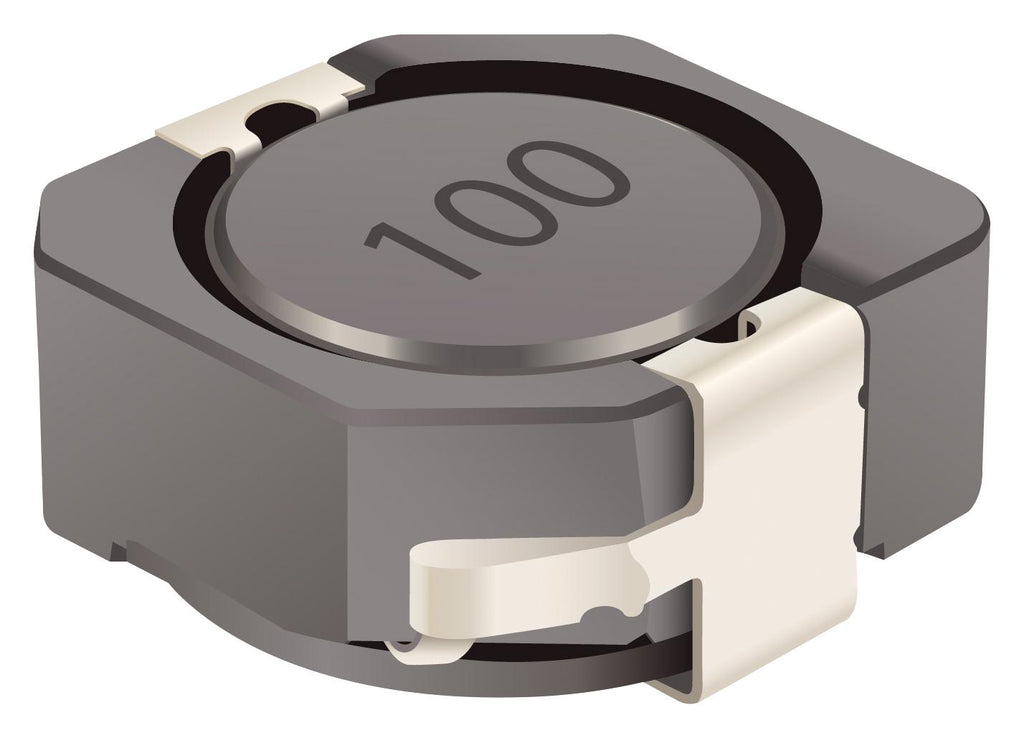

BOURNS - SRR1050A-270Y - Power Inductor (SMD), AEC-Q200, 27 µH, 2.6 A, Shielded, 2.7 A, SRR1050A, 10mm x 10.2mm x 4.8mm
- Inductance: 27µH
- RMS Current (Irms): 2.6A
- Inductor Construction: Shielded
- Saturation Current (Isat): 2.7A
- Product Range: SRR1050A Series
- Power Inductor Case: 10mm x 10.2mm x 4.8mm
- DC Resistance Max: 0.077ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2018)
