Description

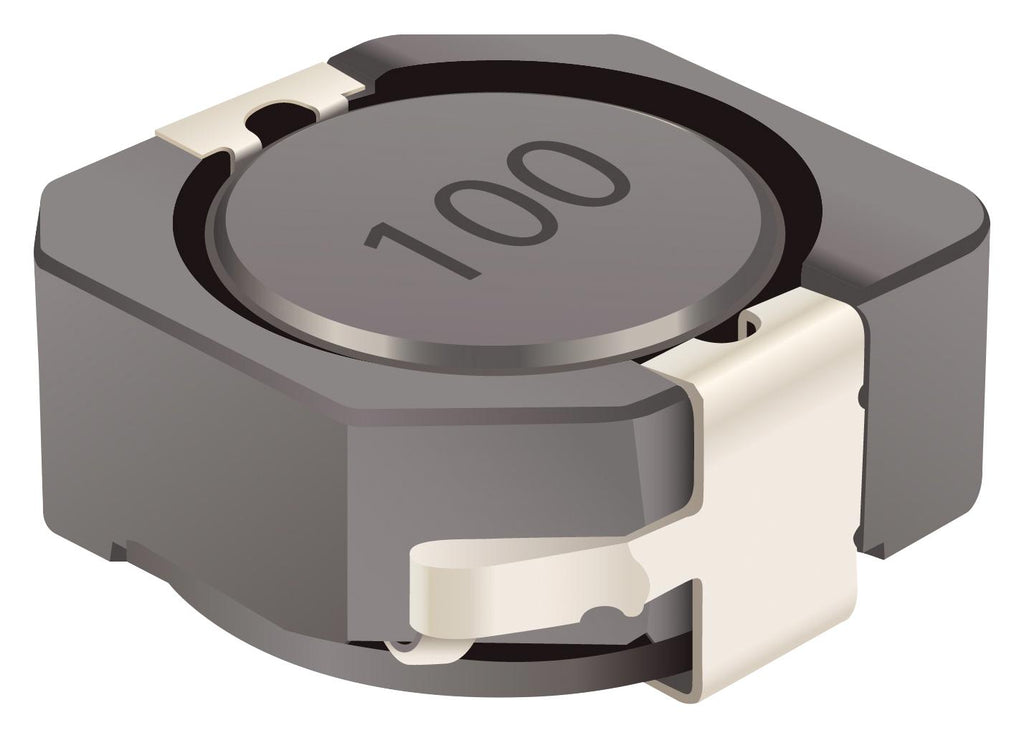

BOURNS - SRR1050A-221Y - Power Inductor (SMD), AEC-Q200, 220 µH, 940 mA, Shielded, 940 mA, SRR1050A
- Inductance: 220µH
- RMS Current (Irms): 940mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 940mA
- Product Range: SRR1050A Series
- Power Inductor Case: 10mm x 10.2mm x 4.8mm
- DC Resistance Max: 0.5ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2018)
