Description

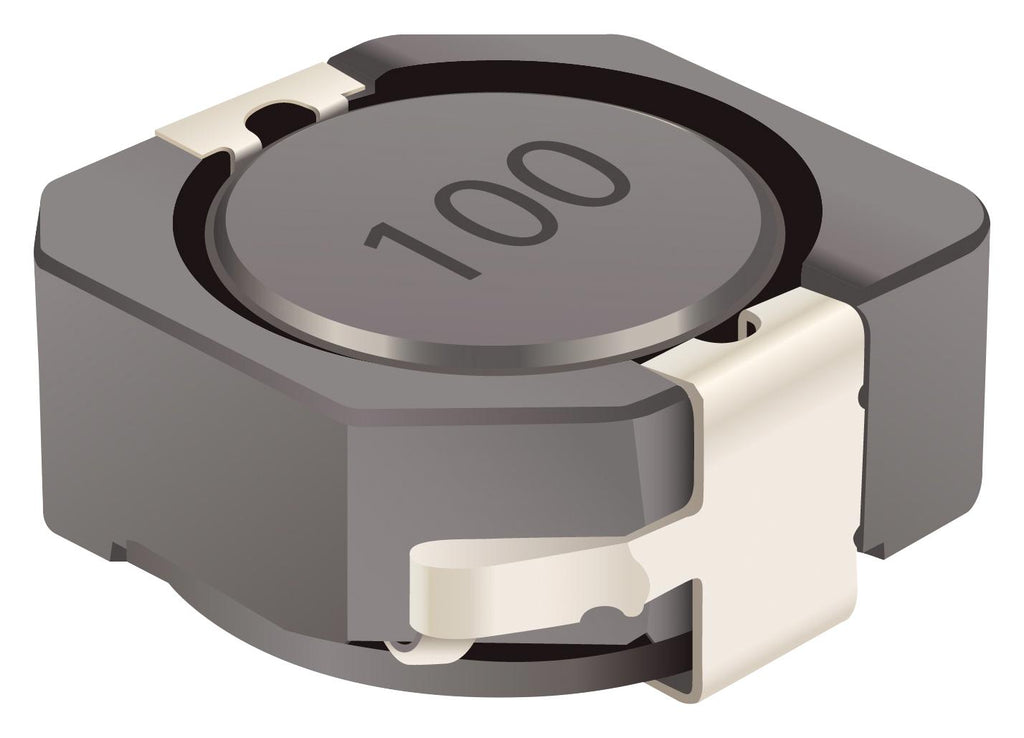

BOURNS - SRR1050A-151Y - Power Inductor (SMD), AEC-Q200, 150 µH, 1.1 A, Shielded, 1.12 A, SRR1050A, 10mm x 10.2mm x 4.8mm
- Inductance: 150µH
- RMS Current (Irms): 1.1A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.12A
- Product Range: SRR1050A Series
- Power Inductor Case: 10mm x 10.2mm x 4.8mm
- DC Resistance Max: 0.37ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2018)
