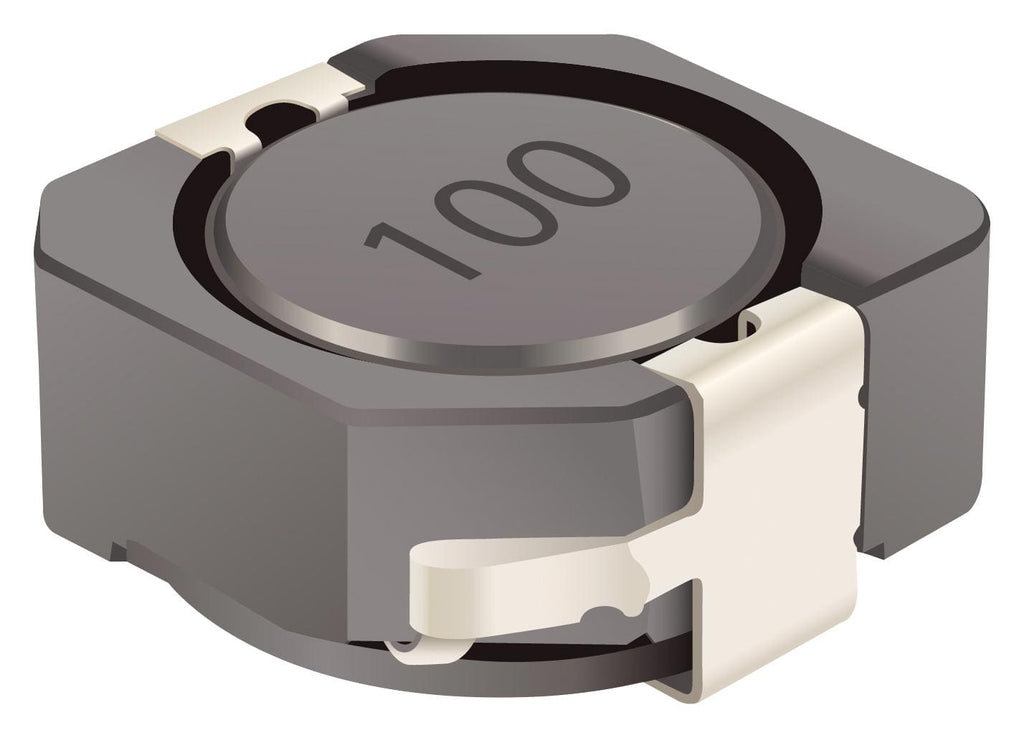

BOURNS - SRR1050A-101Y - Power Inductor (SMD), AEC-Q200, 100 µH, 1.35 A, Shielded, 1.35 A, SRR1050A
- Inductance: 100µH
- RMS Current (Irms): 1.35A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.35A
- Product Range: SRR1050A Series
- Power Inductor Case: 10mm x 10.2mm x 4.8mm
- DC Resistance Max: 0.255ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2018)
