Name: SRR0603-681KL INDUCTOR, 680UH, 10%, 0.12A, SMD BOURNS
Brand: BOURNS
SKU: SRR0603-681KL
Price: 1.23 EUR
Availability: OutOfStock

Due to a change in EU legislation and the customs clearance procedures of deliveries, there is currently a delay in delivery.

Inductors/Spoelen

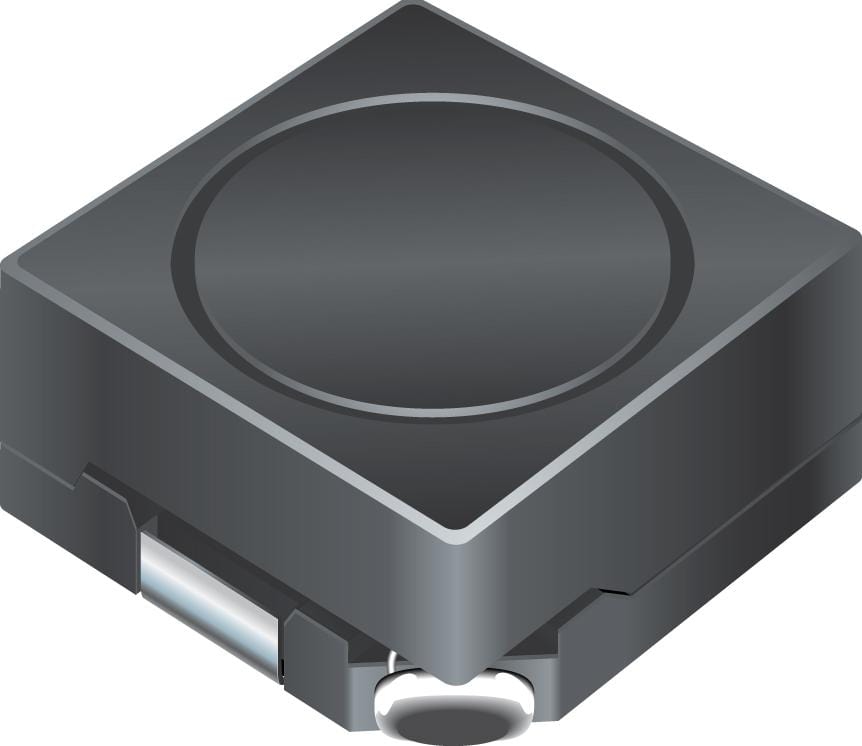

BOURNS Power Inductors - SMD SRR0603-681KL INDUCTOR, 680UH, 10%, 0.12A, SMD BOURNS 2333896 SRR0603-681KL

Roll over image to zoom in Click on image to zoom

Technical Data Sheet - EN

BOURNS - SRR0603-681KL - Power Inductor (SMD), 680 µH, 120 mA, Shielded, 150 mA, SRR0603, 6.5mm x 6.5mm x 3.3mm

Inductance: 680µH
RMS Current (Irms): 120mA
Inductor Construction: Shielded
Saturation Current (Isat): 150mA
Product Range: SRR0603 Series
Power Inductor Case: 6.5mm x 6.5mm x 3.3mm
DC Resistance Max: 10.5ohm
Inductance Tolerance: ± 10%
SVHC: No SVHC (15-Jan-2018)
No. of Pins: 2Pins
Q Factor: 13
Q Test Frequency: 796kHz
Self Resonant Frequency Min: 3.5MHz
